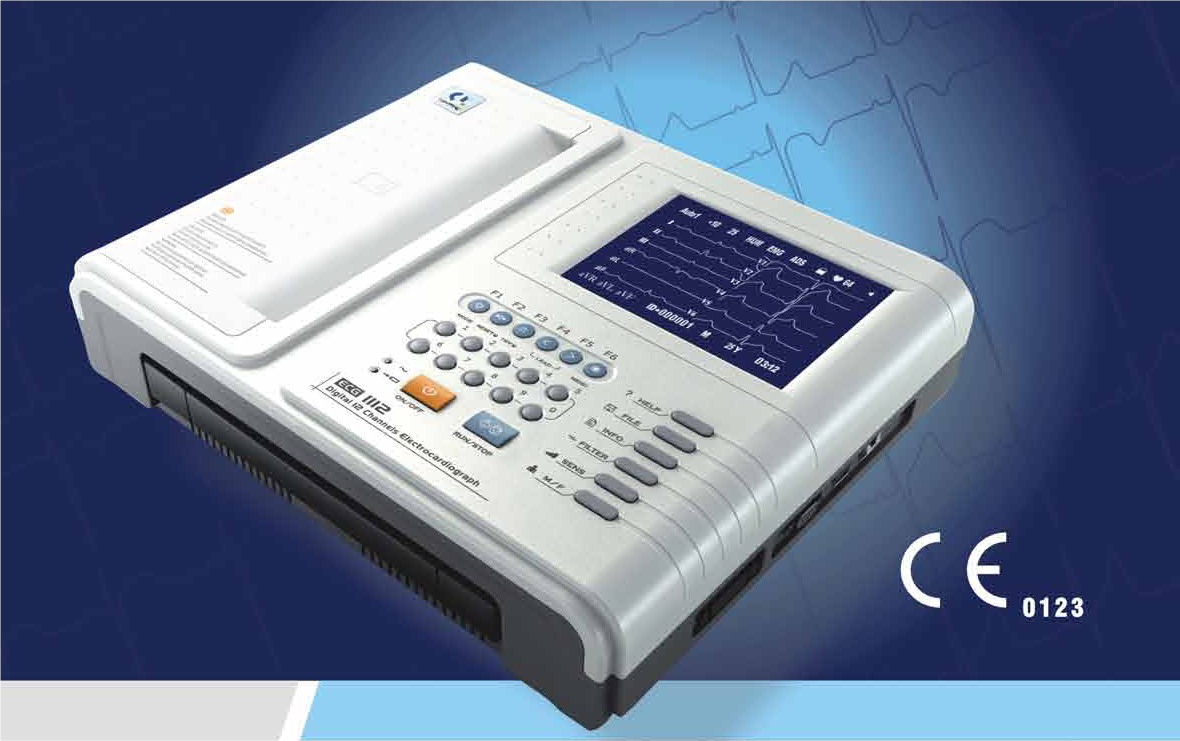

ECG1112/INT DIGITAL - TWELVE CHANNEL - 12 LEADS ELECTROCARDIOGRAPHG MONITOR - 1112L
- Simultaneous acquisition of 12-lead ECG data, real-time recording and printing of 12-channel ECG waveform
- Graphic display of 12-lead ECG waveform
- Built-in analysis software of age which assures accurate analysis result
- Auto-measurement, auto-interpretation, waveform playback and storage of ECG data
- RS232 and USB interface cope with data-share or remote data management requirement
- Option wireless function makes more convenient communication with PC
- User friendly operation system contributed by built-in HELP function
- Literal and graphic operation interface
- Powerful filters to minimize interference
- Heart rate measurement and pace-maker protection circuit
- Multi-printing formats: manual/automatic, Standard 12 channel, 3 channel plus 3 rhythm lead, 6 channel, 6 channel plus rhythm lead, 60’s analysis of arrhythmia, R-R histogram, trend graph
- AC,DC or built-in lithium battery power supply, alarm of battery weak and lead-off
- Comfort and durability contributed by silicon gel keypad
- Tremendous ECG data can be saved in built-in SD card
| MODEL: | ECG 1112L |
| Screen Size | 5.7 inch |
| Input Circuit | Floating, protection against defibrillator and pacemaker |
| Leads | Standard 12 Lead |
| Electrodes | Supplied with Button type |
| Input Impedance | >50MΩ |
| Imput Circuit Current | <50n A |
| Patient Current Leakage | <10µ A |
| Calibration Voltage | 1mV ± 2% |
| Depolarization Voltage | ±500mV |
| Ampling Rate | 1.0ms (1000Hz) |
| A/D Converter | 12 bits |
| Frequency Response | 0.05Hz-165Hz (-3dB) |
| Time Constant | >3.2s |
| Noise Level | <15µVp-p |
| CMRR | >100dB |
| Digital Filters | HUM, EMG, ADS |
| Sensitivity | Auto, 2.5,5,10,20mm/mV (± 2%) |
| Measurement | Heart rate, PR Int., Vent. Rate, P/QPS/T Axis |
| Patient Data | Data, time, ID, name, gender, age, height, weight, blood pressure. etc |
| System Data | Sensitivity, paper speed, filter on/off, hospital name, etc |
| Print-out | Waveform, waveform + measurement report, or waveform + measurement report + analysis report |
| Printing System | High speed, high sensitivity thermal matrix printing system |
| Paper Speed | 6.25,12.5, 25, 50mm/s (± 3%) |
| Printing Paper | 216mm x 30m roll paper |
|
Power Supply AC/DC: BATTERY: |
100V-240V (50/60Hz), DC 19V/3.5A 14.4V/4400mAh, built-in rechargeable lithium battery, over 2 hours working time |
| Safety Standard | IEC, Class I, Type CF |
| Carton Size | 415 x 195 x 380mm |
| Weight | 5.5kgs |
| Optional Accessories |
SD Card Carrying Bag PCECG-500A work station software |
