Light in weight, compact in size
Operation Mode: Automatic, Manual, Analysis
Standard lead mode of European/Cabera lead mode available
Automatic Measurement and Interpretation
Detection and alarm of Lead-off, No Paper, No Battery
Built-in ECG simulator
Built-in rechargeable lithium battery with high capacity
Automatic adjustment of baseline for optimal recording
RS232 communication interface in standard configuration for connecting with PC or setting up of ECG database, option USB and Blue Tooth interface
Built-in Help Function: electrode positioning, ECG basic knowledge, common trouble-shooting, etc. (not available in Class B ECG)
Clinical information such as patient ID, name, sex, age, height, weight, drugs and hospital name can be input
Case Storage function: 15 cases can be saved in the machine or as much as 150 cases in a SD card. Saved ECG waveforms can be cine-looped, printed out or transferred to PC (not available in Class B ECG)

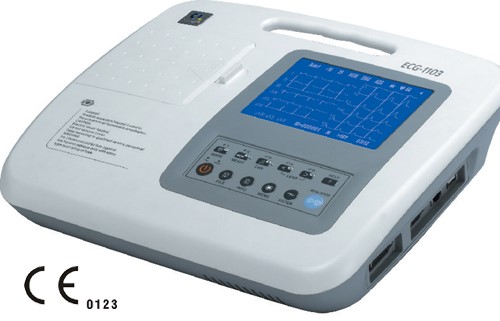

MODEL:	ECG 1103L
Input Circuit	Floating, protection against defibrillator and pacemaker
Input Circuit Current	≤50nA.
Input Impedance	50MΩ
Display	5.7” Screen Display
A/D Converter	18 bit
Acquisition Mode	12 leads acquisition simultaneously
Patient Current Leakage	10µA
Time Constant	≥3.2seconds
Frequency Response	0.05Hz~150Hz
Sensitivity	2.5, 5,10, 20(mm/mV) Auto
CMRR	>100dB (with AC filter)
Calibration Voltage	1mV±2%
Noise Level	<15µVp-p
Anti Baseline Drift	Automatic
Filter	EMG Filter: 35Hz~45Hz (-3dB)45Hz (-3dB) ADS Filter: Auto (0.15-0.50Hz) HUM Filter: 50Hz/60Hz (-20dB)
Patient Current Leakage	<10µA
Paper Speed	6.25/12.5/25/50mm/s
Recording Paper	50mm (width), 20/30m (length), roll/Z-fold
Power Supply	AC: 110/220V, 50/60Hz, 85V~265V (option) DC: 14.4V, built-in rechargeable lithium battery
Dimension	345mm x 300mm x 80mm; 400mm x 180mm x 355mm (Carton)
Net Weight	2.5kgs
Gross Weight	4.5kgs
