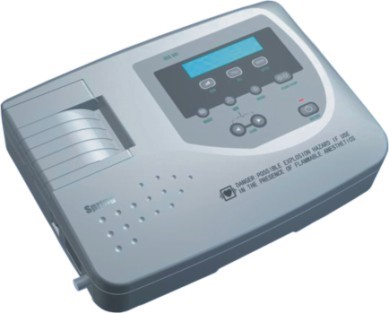

ECG200A DIGITAL - SINGLE CHANNEL - 12 LEADS ELECTROCARDIOGRAPH MONITOR - 200A
- Designed with a high-resolution thermal printer for printing out ECG waveform and annotation as well as related marks, response reaches 150Hz
- Digital filter to prevent baseline drift
- AC Filter
- Pressing key colour keyboard control, LCD display
- Automatic mode for continuous recording
- AC/Rechargeable battery
| MODEL: | ECG 200A |
| Input Circuit | Floating; protection against defibrillator effect. |
| Lead | Standard 12 leads |
| Patient Current Leakage | 10µA |
| Input Impedance | 50MΩ |
| Sampling Rate | 1.25ms |
| Frequency Response | 0.05Hz~150Hz |
| Time Constant | >3.2seconds |
| CMRR | >100dB |
| Sensitivity | 5,10,20mm/mV and automatic gain control |
| Recording Mode | Automatic and manual mode |
| Printing speed | 25, 50mm/s |
| Input Circuit Current | 50nA |
| Safety standards tape | I/CF |
| Width of ECG paper | 63mm |
| Power Supply AC | 220V 50Hz, 100V 60Hz DC: Rechargeable |
| Depolarization Voltage | ±300mV |
| Noise Level | <15µVp-p |
| Net & Gross Weight | Net 2.9 Kgs, Gross 5.8kgs |
