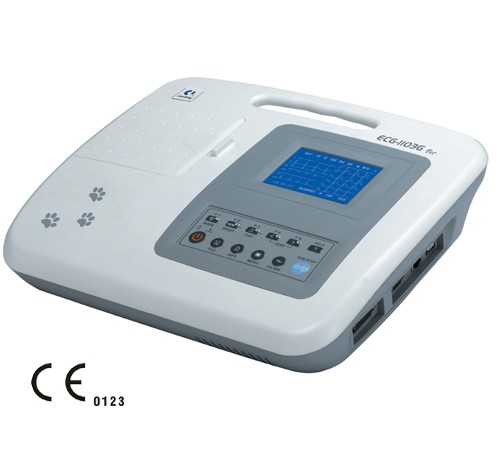

1103G VET DIGITAL - SINGLE CHANNEL ELECTROCARDIOGRAPH MONITOR - 1103G VET
- 3.8” LCD Display 12 leads ECG Waveform
- 4 operation mode: automatic 1, automatic 2, manual, analysis
- Built-in help function, Demo Function
- Lead Mode: Standard or European
- Detection and alarm for lead-off, no paper or no battery
- Built-in ECG simulator
- Automatic adjustment of baseline for optimal recording
- RS232 port to transmit ECG data
- Automatic measurement, Interpretation
- ECG waveform display on LCD
- Built-in Help Function: troubleshooting collection, etc.
- Clinical information such as Patient ID, name, sex, age, height, weight, hospital name can be input
- Case Storage: 15 cases saving and extendable to 150 cases in a SD card
- Saved ECG waveforms replaying and printing
- Cat and Dog’s automatic analysis and diagnosis
- Print out before 10 seconds and extend printing function
| MODEL: | ECG 1103G Vet |
| Safety Standard | IEC CLASS I, TYPE CF |
| Acquisition Mode | 6/7/12 lead acquisition simultaneously |
| Input Circuit | Floating, protection against defibrillator and pacemaker |
| A/D Converter | 12 bit |
| Time Constant | >3.2s |
| Frequency Response | 0.05Hz – 165Hz |
| Sensitivity | 2.5, 5, 10, 20, 40 (mm/mV±2%) Auto |
| Input Impedance | ≥ 50MΩ |
| Input Circuit Current | ≤50nA |
| Calibration Voltage | 1mV±2% |
| Noise Level | <15µVp-p |
| Anti Baseline Drift | Automatic |
| Filter |
EMG Filter: 25Hz – 45Hz (-3dB) ADS Filter: Auto (0.15 – 0.50Hz) Hum Filter: 50Hz/60Hz (-20dB) |
| CMRR | >100dB |
| Patient Current Leakage | <10µA |
| Paper Speed | 6.25/12.5/25/50mm/s |
| Recording Paper | 63mm (width), 20m/30m (length), Roll |
| Power Supply |
AC: 110/220V, 50/60Hz, 85V – 265V (Option) DC: 12V, built-in rechargeable battery |
| Dimension | 415mm x 195mm x 380mm |
| Net Weight | 2.5kgs |
| Gross Weight | 5.5kgs |
| Standard Accessories |
Vet Cable 1pc Vet Clip 5pcs Power Cable 1pc Battery 1pc Screwdriver 1pc Paper Roller 2 pcs Grounding cable 1pc Fuse 2pcs Thermal Paper 1pc |
