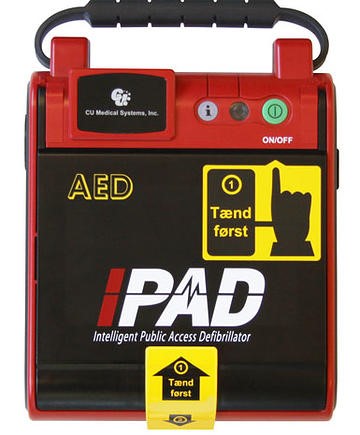

MODEL	NF1200
Defibrillator	- Operation mode: Automatic - Waveform: e-cube biphasic (Truncated exponential type) - Energy:150-200J (escalating) Adult: nominal 150 Joules into a 50 ohm load. Infant/Child: nominal 50 Joules into a 50ohm load.
Shock to Shock Cycle Time	Typically less than 20 seconds
Protocol	Voice prompts and indicators guide user though protocol Follows preconfigured settings. Can be modified with software.
Voice Instructions	-Detailed voice messages guide responder through use of the defibrillator
Controls	Shock Button, i-Button, On/off Button
Indicators	7 LEDs (different colors), i-Button
Environmental/Physical Requirements	- Temperature: 0° ~ 50° - Humidity: -0% ~ 95% - Vibration: Meets EN1789 random and swept sine, road ambulance specification in operating and standby states. - EMI (Radiated/ Immunity): Meets EN55011 Group1 Level B Class B and EN61000-4-3
Battery	-Type: 12 Volt DC, 4.2Ah, lithium manganese dioxide, disposable long life primary cell. - Capacity: Minimum 120 shocks or 4 hours of operating time.
Automated and User-Activated Self-Tests	- Daily Self-tests: Tests internal circuitry, waveform delivery system, battery capacity, and software. - Battery Insertion Test: Upon battery insertion, extensive automatic self-tests and user–interactive tests check device readiness
Physical	- Size: 220mmW x 260mmL x 70mmH - Weight: 2,2Kg
Data Recording and Transmission (OPTIONAL)	- Infrared: Wireless transmission of event data to personal computer using the IrDA protocol. - Data Stored: First 40 minutes of ECG and the entire incident’s events and analysis decisions
