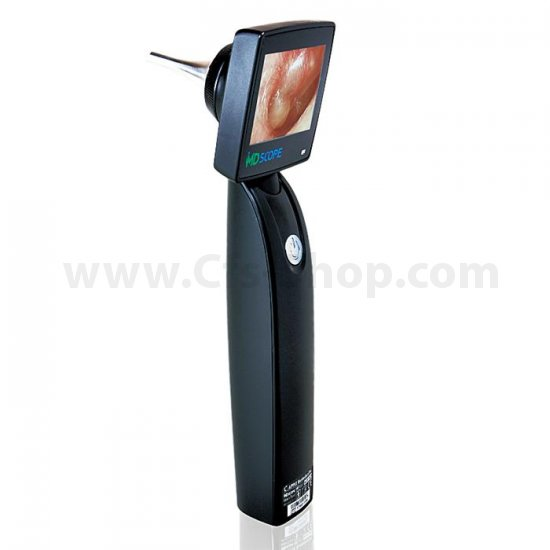

MS101 MD Scope Video Otoscope MS101
The MDScope Video Otoscope is a hand-held medical device that includes a video camera for capturing a video image of the outer ear canal and/or tympanic membrane. The image is displayed directly on a built-in screen or displayed on an external display device via connection to a video out port. The MDScope video otoscope is preset for its focus, brightness level and white balance. It is powered by two AA batteries for a continuous operation of about 4 hours.
| MODEL | MS101 |
|
Dimensions (approximate) |
Length: 7.5cm (3”) Width: 6.3cm (2-1/2”) Height: 21.2cm (8-3/8”) |
| Focal Length/Distance | 1 – 4cm away from target |
| Weight | Approximately 180g |
| Batteries | 2 x AA Alkaline Batteries |
| Display Size | 2.4” TFT LCD |
| Video Out | NTSC System |
|
Operating Conditions Temperature Relative Humidity |
+10°C to +40°C (+50°F to +104°F) 30% to 75% non-condensing |
| Standard Accessories |
· Camera module (45mm) · Protective Cover · Video Cable · User Manual · Warranty card · “AA” Alkaline batteries x 2 · Disposable Specula -24 pieces · Cotton Swab – 25 pieces |
| Optional Accessories |
· Image Dongle with USB Cable x 1 · Long Camear Module (75mm) x 1 · Flexible Camera Module (150mm) x 1 · Flexible Camera Module (300mm) x 1 · Disposable Specula x 250 · Cable Set x 1 |
