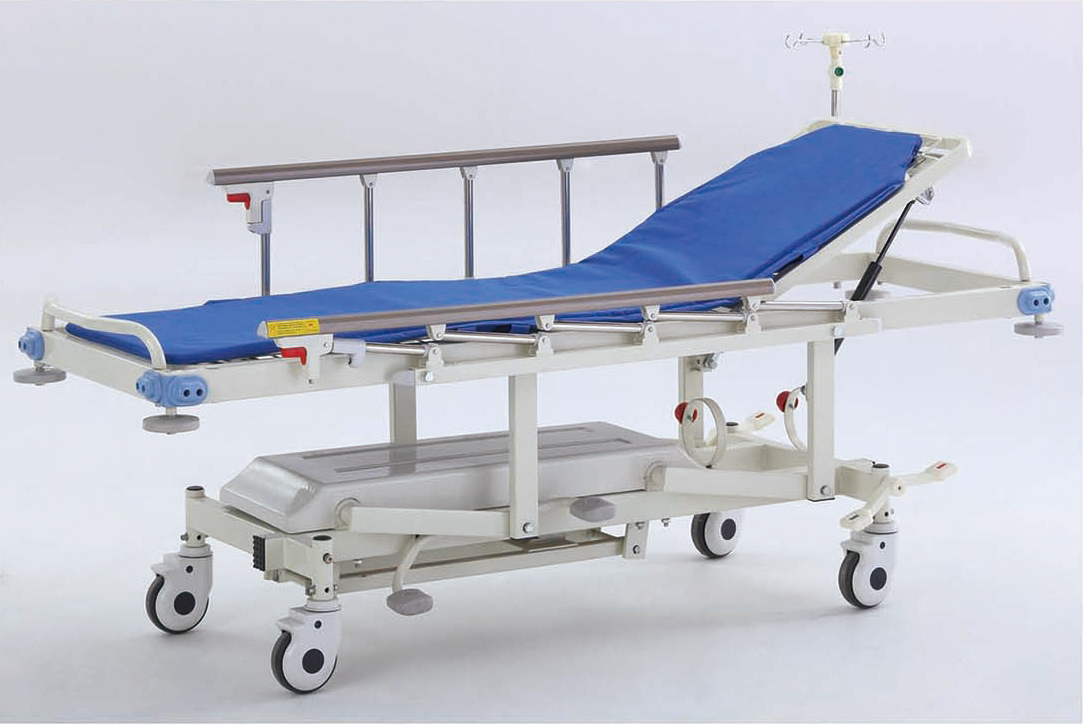

E-2 Patient Stretcher
General purpose patient trolley.
Hydraulic height adjustment
Air assisted backrest operation
Drip pole
Oxygen bottle holder
Fold away sides
Bumper wheels
1. Back rest: 0-45°±5°, controlled by gas spring
2. Lowest height: 460mm±10mm
3. Highest height: 850 mm±10mm
4. Safety loading: 2500N
5. The main frame of stretcher is made of galvanized steel tube epoxy coated spray.
6. Φ125 mm dustproof castors with central control system,
7. The base cover is made of ABS material.
8. Equipped with infusion pole, drainage hook and collapsible side rails.
9. It is the best choice for emergency room and ICU ward for transferring patients.
2. Lowest height: 460mm±10mm
3. Highest height: 850 mm±10mm
4. Safety loading: 2500N
5. The main frame of stretcher is made of galvanized steel tube epoxy coated spray.
6. Φ125 mm dustproof castors with central control system,
7. The base cover is made of ABS material.
8. Equipped with infusion pole, drainage hook and collapsible side rails.
9. It is the best choice for emergency room and ICU ward for transferring patients.
Packing size of stretcher: 2100*690*500mm
(1 pc per wooden case)
N.W.: 100KGS G.W.:130KGS
(1 pc per wooden case)
N.W.: 100KGS G.W.:130KGS
