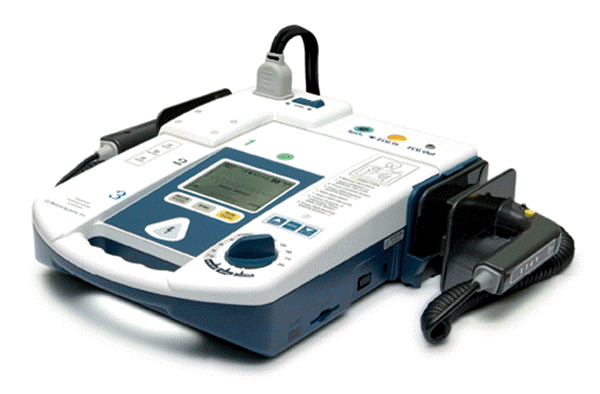

MODEL	CU-ER5
*Defibrillation:* ECG Lead Select Waveform Maxiumum Shock Output Energy Energy Accuracy Charge Time Shock Delivery Patient impedance AED Mode Synchronous Cardioversion Voice & Text Prompts (AED)	I, II, III, aVR, aVL, aVF, V, Paddle/Pads, Ext ECG Truncated Exponential Biphasic 20ms Manual: 1~10J, 15j, 20J, 30J, 50J, 70J, 100, 120, 150J, 170J, 200J AED Mode (Single energy output): 150J Internal Paddle:: 1~10J, 15J, 20J, 30J, 50J 1~10J : ±2J, 15~200J : ±15% Less than 12 seconds to 200 Joules Via multifunction defib electrode pads External paddle (pediatric) or internal paddle (pediatric) Shock Range : 25Ohm ~ 175Ohm Shock advisory sensitivity and specificity meet AAMI DF-80 guidelines Pads or External paddle, External ECG input Voice & text prompts guide the user through the protocol All the user interfaces are supported in local language for easy use and access
*ECG Monitor:* Input Lead Fault Heart Rate Display ECG size Heart Rate Alarm	Lead I,II, III obtained through 3-lead ECG cable separate monitoring electrodes With 5-lead cable obtain leads I, II, III, aVR, aVL, aVF, or V “Lead Fault” message and dashed line displayed, if an electrode or lead wire becomes disconnected. 30 to 300bpm (±3bpm) 5, 10, 20mm/mV and Auto-gain Less than Minimum setting rate / Over the Maximum setting rate
*SpO2 Pulse Oximetry (Nellcor)* Saturation Pulse Rate	70-100% (± 3 digits) 20-250bpm (±3bpm) 0.2% Less than Miniumum setting rate / Over than maxiumum setting rate
*Power source*	Internal Battery – Rechargeable / 12V 4.2Ah Nickel-Metal Hydride battery pack Capacity – when new, minimum of 200 shock deliveries (200J) Minimum of 4 hours for full charging External Battery Pack – Disposable /12V 4200mAH Lithium battery pack Capacity – when new, minimum of 200 shock deliveries (200J) AC/DC Adapter – Input : 100 – 240V AC 50/60Hz 170VA Output – DC 12V, 3.6A Car Cigar Lighter Jack DC 12V
*Physical*	Dimensions - Without external paddle : 254* 365105(mm) With External paddle : 455365*105(mm) Weight; 3.5kg (without Paddle)
*Environmental Requirement* Temperature Humidity	Operation: 0°C ~ 40°C Storage: -20°~ 60°C 5% ~ 95%
*Data Storage & Management*	Internal flash memory: 12 hours of event and ECG recording SmartMedia Card (32M): 42 hours of event and ECG recording or 1 hour if voice recording is enabled. Transmit multi patient data to PC UART/ IrDA
*Display*	LCD Dimensions - 4” diagonal (80mm60mm) High Resolution Mono Graphic LCD Resolution - 320 240 pixels Wave Viewing Time - 3.2 seconds (ECG) Sweep Speed - 25mm/sec Back light - EL Back Light
*Automated Self-Test*	- Power On Self-Test / Run Time Self-Test / Manual Test - Periodic Self-Tests (daily / weekly / monthly)
*Standard Accessories*	- Device - External Paddle (Adult, pediatric) - 3-lead ECG Cable - Power cord - AC Adapter - Internal Battery (Ni-MH) - User’s Guide
*Optional Accessories*	- Date Card (SMC 32M) - Thermal Printer - Printer Paper (10 rolls) - Cigar Lighter Jack for Car - Multifunction Defib. Pads - Adapter for Defib. Pads - 5-Lead ECG Cable - ECG Electrodes (50EA) - SPO2 Module Set (Probe, Extension Cable) - Disposable Battery Pack (lim02) - IrDA Adapter for Data Communication - Software for Data Management with Key File (UART cable included)
