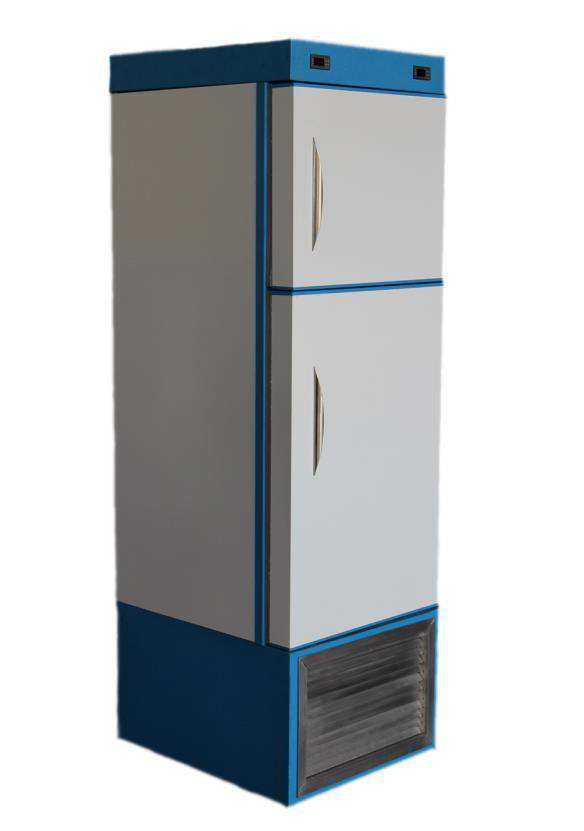

C130 CONTEMP VACCINE FRIDGE C130 CONTEMP VACCINE FRIDGE





PRODUCT
Multi 160 litre 220V/AC Vaccine fridge & freezer for the use of safe storage of immunizations, insulin and vaccines. The product carries a 5 year guarantee.

CHARACTERISTICS
Industrymed Wholesalers(PTY)Ltd designs and build Contemp vaccine fridges to the required standards of the WHO. Our products are rugged to withstand the African weather conditions and taking into consideration the vast distances between hospitals and clinics we created a durable product with low maintenance costs. Our vaccine refrigerators digitally controls temperatures between 4⁰C and 6⁰C and the freezers are digitally controlled between -10⁰C and -12⁰C.Contemp vaccine fridges has built in glycol energy tanks that provides it with the capability of a 72 hour hold over time at 43⁰C ambient in the case of power failures. A big advantage of the contemp vaccine fridge is that the freezer and refrigerator can be pre-set at factory or on site to be either a freezer and refrigerator or just a refrigerator. This means that the refrigerator capacity can be enlarged by additional 40 litres should the client wish not to use the top container as freezer.


DIMENSIONS
HEIGHT: 1750mm
WIDTH: 650mm
DEPTH: 750mm

CAPACITY
FREEZER: 40 Litres
REFRIGERATOR: 120 Litres


OUTER CASINGS:
1mm chromadek sheeting polar white

THERMAL INSULATION:
100mm polyurethane,80 density

INNER CASING:
1mm stainless steel

OUTER CASING:
2 x outer doors with independent door seals

EUTECTIC TANKS:
1 x 6 litre freezer tank
1 x 12 litre refrigerator tank

Both aluminium

CONTROLLERS:
2 x digital temp controllers and probes

CONDENSERS:
4 x static condensers

EVAPORATORS:
2 x evaporators

COMPRESSORS:
2 x compressors


FREEZER
1.Aluminium eutectic tank x 6 L x1
2.Digital controller and probe 220V x1
3.1/4 hp commercial compressor CFC free x1
4.Static condenser/no fan x1
5.Capillary tube x1
6.Dryer x1
7.8 Pin relay and base x1
8.Conditionary fan x1
9.100mm Thermal insulation-isolated casing x1
10.Fast freezing x1

FRIDGE
1.Aluminium eutectic tank x 12L x1
2.Digital controller and probe 220V x1
3.1/4 hp commercial compressor CFC free x1
4.Static condenser/no fan x1
5.Capillary tube x1
6.Dryer x1
7.8 Pin relay and base x1
8.Conditionary fan x1
9.100m Thermal insulation-Isolated casing x1
10.Anti freezing protecting casing x1
