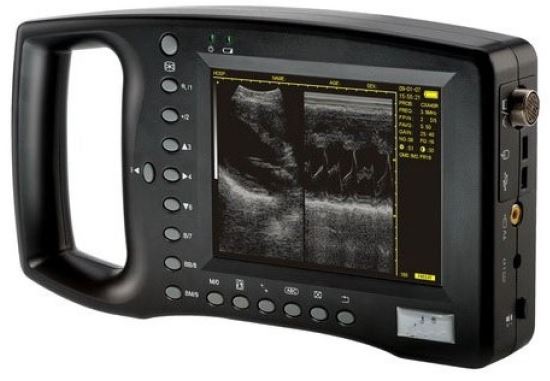

WED-3100 DIGITAL ULTRASOUND SCANNER WED-3100
Net weight:700g
5.0 inch TFT LCD
Easy-to-use GUI menu
Low power consumption
USB 2.0 For real-time picture uploading to PC
Full digital beamforming technology
Probe automatic identification
Gama correction, Color encode, Image Smoothen
| Display Modes | B,B+B,B+M,M,4B |
| Scanning Depth | 80mm~220mm |
| Gray Scales | 256 |
| Cine-loop | 400 frames |
| Image Permanent | 128 frames |
| Storage | up/down, left/right |
| Image Conversion | distance, circumference, area, volume, EF |
| Measurements | rate, heart rate,Time |
| OB Measurements | BPD, GS, CRL, FL, HC, AC, EDD, GA, FW |
| Port | VIDEO(PALD, NTSC), USB 2.0,Mouse |
| Monitor | 5 inch TFT color LCD |
| Body marks | 40 |
| Comments | date&time, name, sex, age, hospital, ...... |
| Applications | abdominal, OB/GYN, urology, cardiology, ...... |
| Weight | 700g |
| Dimensions | 230mmX120mmX38mm |
| Battery Working | >3 hours |
Probes:
1)3.5MHzConvex Probe
Frequency range:2.5MHz,3.5MHz,5.0MHz
Application:Abdomen,GYN,OB,Urology
2)7.5MHz Linear Probe
Frequency range:6.5MHz,7.5MHz,8.5MHz
Application:Small Parts
3)5.0MHz Micro-Convex Probe
Frequency range:4.5MHz,5.0MHz,5.5MHz
Application:Pediatric, Cardiac
4)6.5MHz Transvaginal Convex Probe
Frequency range:5.5MHz,6.5MHz,7.5MHz
Application:Transvaginal,Endorectal
5)7.5MHz Endorectal Linear Probe
Frequency range:6.5MHz,7.5MHz,8.5MHz
Application: Endorectal
Standard Configuration:
3.5MHz convex probe(Frequencyrange:2.5MHz,3.5MHz,5.0MHz)
SP-3 power adapter
Mouse
5.0MHz micro-convex
probe(Frequencyrange:4.5MHz,5.0MHz,5.5MHz)
7.5MHz HF linear probe(Frequency range:6.5MHz,7.5MHz,8.5MHz)
6.5MHz endo-vaginal probe(Frequency
range:5.5MHz,6.5MHz,7.5MHz)
7.5MHz endorectal linear probe(Frequency
range:6.5MHz,7.5MHz,8.5MHz)
Video Printer
Extra battery
Car charger
