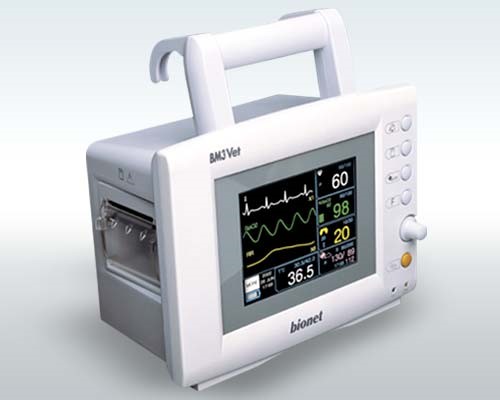

PMBM3V VITAL SIGNS MONITOR BM3 - VET
- Standard parameters: ECG, RESP, NIBP, SpO2, TEMP
- 5.7” Colour LCD display
- 58mm built-in printer
- Direct keys for frequently used functions
- Trim knob for easy menu setup
- Convenient handle with hanger
- Battery or Direct DC (18v) input for vehicle transport
- Lightweight, easy to transport
- Compact and rugged
- Built-in 3 channel thermal printer
- 24 hours of memory capacity
- Free lifetime software upgrades
| MODEL: | BM3 – VET |
| Display | LCD 5.7” color |
| Dimensions |
23.8cm x 25cm x 16.3cm Approx. 3.5kg |
| Display Parameters |
Up to 3 waves (ECG, SpO2, Respiration) Categorized alarms (3 priority levels) Visual Alarm Heart rate tone Battery status External power LED |
| Interfaces |
DC input connector: 11 to 16 VDC, 3A max Defib Sync Output Signal Level: 0 to 5V pulse Pulse Width: 100 ± 10ms LAN digital output for transferring data to an external computer |
| Battery |
Internal battery: sealed lead-acid Battery status indicator Operating Time: 2.5 hours typically |
| Thermal Printer |
Speeds:25, 50mm/sec Paper Width:58mm |
| Power Adapter |
Adapter type (MW160KA1803F01) Input: 100 – 240 vac (50/60Hz) Output: 18Vdc, 2.5A |
| Tabular Trends |
Memory Storage: 24 hours Date Interval:1, 5, 15, 30 min and 1 hour Tabular Format: One table for all variables |
| Graphical Trends | Display Duration: 30, 60, 90 min. 3, 6 , 12 hours |
| Standard Accessory | 3-lead ECG cable – 1ea |
| Accessory |
Electrodes – 10ea NIBP tubing, 3m long – 1ea Blood pressure cuff (reusable) – 1ea Sp02 sensor extension cable (2m) – 1ea Sp02 sensor (Y type) – 1ea DC adapter, 18VDC, 2.5A – 1ea |
| Optional Accessory |
Temperature probe, reusable (OPTION) Thermal paper (OPTION) |
| ECG | |
|
3 Leads 30 to 300bpm +/- 3bpm 0.5Hz to 40Hz 25mm/sec 0.5, 1, 2, 4 mV/cm Indicator on waveform display, user selectable ≥ 5MΩ ≥ 90dB at 50 or 60 Hz ± 5mVAC, ± 300mVDC ≤5s ≤8s |
| SpO2 | |
|
0% to 100% 30 to 300bpm 70% to 100% ± 2 digits 0% to 69% unspecified ± 3 bpm |
| NIBP | |
|
Oscillometric Manual: Single measurement Auto: Automatic intervals of 1,2,3,4,5,10,15,20,30min 1,2,4,8 hours 30 to 300mmHg Systolic: 60 to 250mmHg Mean Arterial Pressure: 45 to 235mmHg Diastolic: 40 to 220mmHg |
| Respiration | |
|
50to 120 breaths/min ± 3 breaths/min 25mm/sec |
| Temperature Unit | |
|
15ºC to 45ºC 25ºC to 45ºC ± 0.1ºC 15ºC to 24ºC ± 0.2ºC |
| Compatible With | YS1 Series 400 temperature probes |
