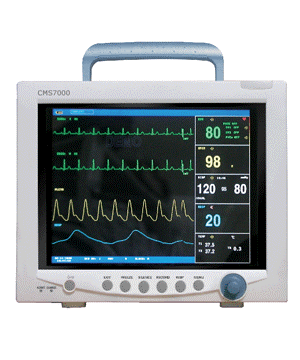

PM7000/NSTE VITAL SIGNS MONITOR CMS7000

Features:
·         12.1"High brightnees TFT LCD display
·         Portable ,streamline handle design
·         With Standard interface, oxygen graph, trend chart, big character interface and view bed, convenient to operate
·         Powerful functions for parameter waveform, trend storage and review
·         Achieve data storage and software updating by USB Interface
·         Calculation of drug concentration
·         Power supply:  Built-in rechargeable lithium battery, AC/DC, achieves uninterrupted monitoring
·         Connect to Central Monitoring System by 3G, Wi-Fi or wired mode
·         Be applicable for adult, paediatric and neonate for all-round monitoring
·         Sync display of 7-lead ECG
·         Compatible and self identify 3-lead and 5-lead ECG cable
ECG
■ Lead Mode:  3-lead or 5-lead
■ Measurement and alarm range for HR 15 ~350bpm
■ Measurement and alarm range for ST segment:  -2.0 mV ~ + 2.0mV
■ Scan speed:  12.5mm/s, 25mm/s, 50mm/s

Respiration
■ Method: R-F (RA-LL) Impedance
■ Measurement and alarm range:  0 ~ 150 rpm
■ Apnea alarm:  10 ~ 40s


SpO2
■ Measurement range: 0-100%
■ Accuracy: 70% ~ 100%, ±2%
■ Measurement and alarm range for PR:  30 ~ 250 bpm

NIBP
■ Method:  Oscillometry
■ Mode:  Manual/AUTO/Continuous
■ Measurement interval in Continuous mode:  5 minutes
■ Measurement and alarm range: 10 ~ 270mmHg
■ Over-pressure protection:  dual-protection for software and hardware


Temp
■ Channel:  - dual channel
■ Measurement and alarm range: 0 ~ 50°C


Dimensions
■ 319mm (L) x 161mm (W) x 269mm (H)

◇ 5-lead ECG, NIBP,  SpO2, Resp, PR, Dual-channel Temp

Optional:
◇ IBP,ETCO2,12-lead ECG,Built-in Thermal Printer
