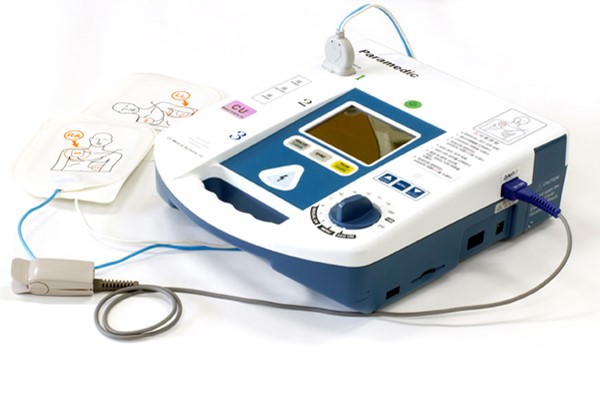

AED ER3 PARAMEDIC SERIES AED MANUAL / SEMI AUTOMATED EXTERNAL DEFIBRILLATOR - CU-ER3
- Manual Mode – 12 steps escalating
- AED Mode – 150J into a 50Ω load.
- Automatic analysis of patient ECG
- User guide with text and voice prompts.
- 320 X 240 graphic LCD display.
- Versatile Power Supply, rechargeable battery pack and AC adapter standard.
- Battery has capacity of 200 shocks when fully charged.
- Car cigar lighter jack power cord and disposable battery pack optional.
- Rescue data collected is stored in internal flash memory.
- Rescue data can be downloaded for review, archiving and printing.
- Automatic self tests, prompts and alarms given if device fails self tests.
| MODEL | CU-ER3 |
| ECG Monitor |
- Patient connection: Defibrillation Pads, ECG Electrodes. - Bandwidth: Monitoring Mode: 0.3 to 40Hz (-3dB) EMS Mode – 1~30Hz - ECG size: 5,10, 20mm/mV display on monitor ( Auto scaling) - Heart rate: Digital 30 to 300 bpm (±2%) |
| Defibrillator |
- Operation mode: Manual/Semi automatic - Waveform: e-cube biphasic (BTE type) - Energy: - Manual mode: Variable energy levels selection (12 steps escalating) (2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200)J - AED mode: 150J into a 50Ω load - Synchronous Cardio version: Energy deliver begins within 60ms of the QRS peak - Charging time: Less than 10 seconds - Controls: - Manual mode: CHARGE, SYNC (R-wave), DISARM - AED mode: ANALYZE, PAUSE - Detection Level: > 0.1mV ECG - Defibrillation Electrodes: Multifunction electrodes (Disposable) Adult adhesive pads (pre-gelled) |
| Voice and Text Prompts |
- Voice and text prompts guide the user through the protocol - All the user interfaces are supported in local language for easy use. |
| Data Storage & Management |
- Internal flash memory: 12 hours of event and ECG recording - SmartMedia Card (32M): 42 hours of event and ECG recording or 1 hour if voice recording is enabled. - Multi patient data recording - Review the patient’s ECG, Incident details and the device information - Transmit multi patient data to PC |
| Automated Self-Test |
- Power On Self-Test / Run Time Self-Test / Manual Test - Periodic Self-Tests (daily / weekly / monthly) |
| Display |
- Screen Type: High resolution display (graphic LCD) - Screen size: 4 inches diagonal, 320x240 pixels - Sweep speed: 25mm/sec, nominal - Viewing time: 3.2 seconds |
| Physical |
- Size: 254mm x 309mm x 93mm (L x W x H) - Weight: Approximately 2.8Kg - Patient Isolation: Type BF |
| AC Adaptor |
- Input: 100 ~ 240V AC 50/60Hz 170VA - Output: + 12VDC, 3.6A |
| Battery Pack |
- 12V Nickel-Metal Hydride battery pack (rechargeable) - Charging time: Minimum of 4 hours for full charging - Capacity: when new, minimum of 200 shocks deliveries (fully charged) |
| External Link |
- UART port - IrDA port |
| Package Contents | - Device, 1 Sets of pads, 1 Power Cord, 1 AC Adapter, 1 Long Life NI-MH battery, 1 Operator’s Manual, 1 Quick Reference Card, SPO2 Probe |
| Optional Accessories |
- Carrying Case - Car Cigar Lighter Jack Power Cord - SmartMedia Card (32M) - External Thermal Printer (wire) and paper - UART Cable / ECG Cable (3 lead) / ECG Electrodes. - Data management software(CU-EX1) for multi patient - Lithium Battery (disposable) - Pediatric pads |
