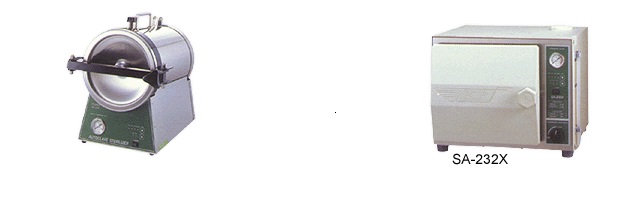

ACL232 MANUAL AUTOCLAVES PORTABLE SA-232 SERIES
- Inexpensive, reliable, safe, easy operation and maintenance
- High efficiency for sterilizing wrapped/unwrapped/liquid/utensils, etc.
- Stainless steel sheathed heater for easy maintenance
- Versatile programs for selection:
- Sterilization pressure adjustable from 0.9 – 2.1 kg/cm² assoc. with 115˚C – 134˚C
- Preset sterilization time at 4 / 15 / 30 minutes depending on sterilization substances
- Microprocessor control operates sterilization automatically
- Sterilization starts timing only once set temperature is reached
-
Complies with quality certifications and specifications of 93/42/
| MODEL : | SA-232 Portable |
| Overall Dimensions | 330mm x 420mm x 400mm |
| Capacity | 16 l |
| Temperature / Pressure | Unwrapped / wrapped / liquid : 122°C ; 1.4kg per cm2 |
| Control System | Pressure control |
| Power Consumption | 220-240V : 0.9kW ; 4Amp. |
| Auto Drying | N/A |
| Pre-vacuum, Dry-vacuum | N/A |
| Indicators | Yes |
| Temperature Display | Temperature gauge |
| Sterilization Temp / Time | Wrapped: 121°C - 30 minutes |
| Unwrapped: 121°C - 15 minutes | |
| Standard Accessories | ü Sterilization box x 1 |
| ü Tray x 1 | |
| Optional Accessories | ü Tray frame x 1 |
| ü Tray x 3 | |
| ü Tray holder x 1 | |
| ü Spring x 2 | |
| Safety Devices | ü Over-heat shutout |
| ü Safety valve | |
| ü Release valve | |
| ü Emergency exhaust valve | |
| ü Door safety holder | |
| ü Pressure control switch | |
| Quality Standard | CE-MDD |
