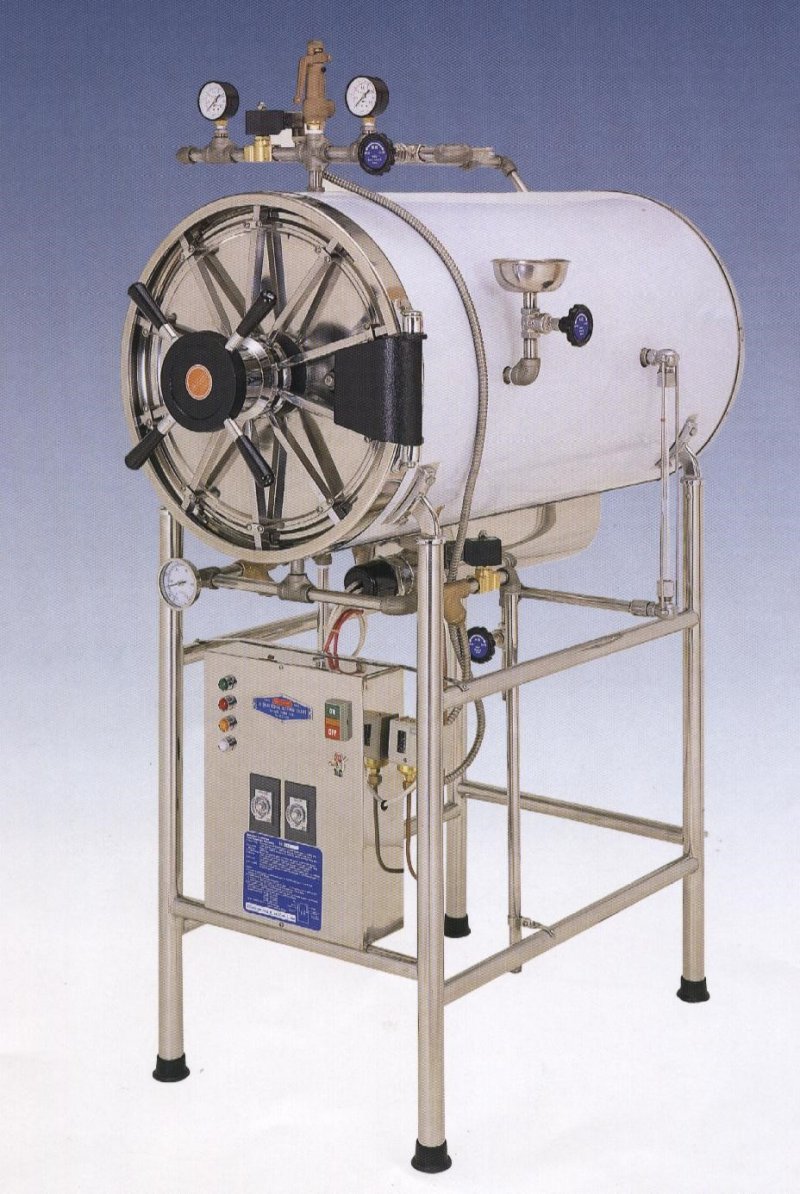

ACLTC-500 HIGH PRESSURE STEAM AUTOCLAVE HORIZONTAL TYPE TC-500 SERIES
- Double walled stainless steel chambers insulated with glass fiber capable of preventing the heat emit efficiently. The door handle is well designed to prevent body burns.
- The critical working pressure gauges easy for monitoring the working pressure for both interior and exterior chambers.
- Sterilization timer starts working when the set temperature rises to the set point.
- Temperature is adjustable from 121 to 134 at 1.2kg/cm2 and 2.2kg/cm2.
- OPTIONAL FEATURES:
- Automatic Water filing – when the water level in house of steam generator arrives the minimal level below, the built-in system will fill the water to the safe and working water level automatically.
- Automatic Drying & Exhaust – Set drying time and when the sterilization cycle is complete, the drying function will process automatically.
- Safety door lock activated by pressure – in order to prevent the personal injury by negligence accidentally, the door can’t be opened when pressure in interior chamber exceeds 0.2kgf/cm2
- Pre-vacuum and drying vacuum – pre-vacuum to speed up the sterilization cycle. Drying Vacuum can exhaust the residue steam and water in the chamber, which can reach the requirement for Bowie & Dick Vacuum testing at 134°C for minutes continuously.
- Water feed optional.
| MODEL : | TC500 |
| Chamber | 500mm × 1000mm |
| Capacity | 196 l |
| Weights & Dimensions | 150 X 80 X 182 cm , 265 kgs |
|
Temperature / Pressure Unwrapped / wrapped Liquid |
122°C - 134°C ; 1.2kg per cm², 30 minutes 121°C at 1.2kg/cm2 (use for manual drying function), 15 minutes Fast heating to reach 120°C in 30 minutes and 135°C in 35 minutes |
| Control System | Pressure control |
| Power Consumption | 10KW220V : 50Hz |
| Power Supply | 220V, 50Hz |
| Indicators | Yes |
| Standard Accessories | ü Stainless Steel #304 Tray x 1 |
| ü Clip x 1 | |
| Optional Accessories / Spares | ü Heater |
| ü Silicon door gasket | |
| ü Safety valve | |
| ü Circuit board | |
| ü Pressure / temperature gauge | |
| ü Timer | |
| Safety Devices | ü Double-walled chamber insulated with glass fibre to avoid burns |
|
ü Heavy gauge stainless steel #304 chamber 4.0mm, outer 3.0mm thickness |
|
| ü Safety device | |
| ü Pressure release valve | |
| ü Low-water level shutout safety device | |
| Quality Standard | CE-MDD |
