Mini-Max Mini-Max

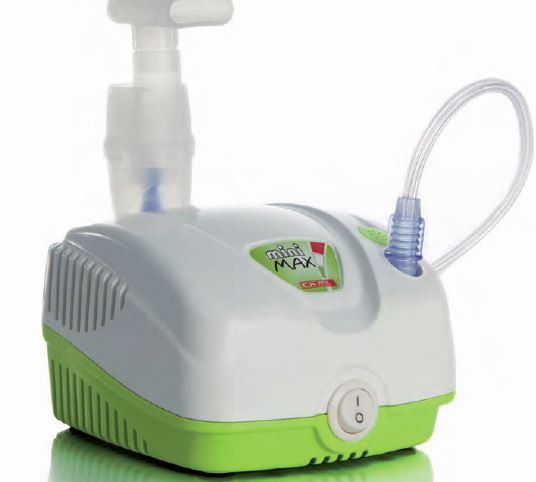

MINIMAX is a device for aerosoltherapy. Designed for home-care with compact size and carrying bag for easy
transport of unit, accessories and medications.
- HI-FLO Jet Nebulizer
- Adult Masks with elastic strings
- Child Masks with elastic strings
- Mouthpiece
- Nosepiece (non invasive)
- Air Tube
- Air Filter
- Carrying Bag
- Detachable power cord
| Compressor | Oiless and maintenance-free piston pump |
| Power Feeding | 230V-50Hz - other configurations on request |
| Power consumption | 170 VA |
| Max Pressure | 2.5 bar 36 psi 250 kPa |
| Operating Pressure | 1.1 bar 16 psi 110 kPa |
| Max Air Flow | 14 l/min |
| Operating Air Flow | 4,8 l/min |
| Neb-rate with 4 ml solution | 0,35 ml/min |
| Mass Median Aerodinamic Diameter | 2,44 μm (MMAD) according to EN-13544-1 |
| Respirable Fraction (< 5μm) | > 80% |
| Duty Cycle | Ton: 20min | Toff: 40min |
| Noise Level (EN 13544-1 Standard) | Approx. 60 dBA |
| Weight | 1,45 kg |
| Size (Main Unit) | cm 13 x 10 x 15 |
| Years of Warranty | 3 |
| Shipping carton | 6 |
| Place of Manufacturing | Italy |
