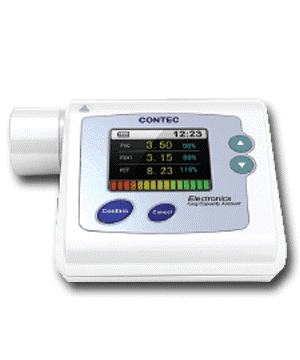

CMS-SP10 SPIROMETER CMS-SP10
Designed for daily home, healthcare and clinics.
FEATURES:
FEATURES:
- Ultra-thin design for portable carrying, easy operation for convenient test
- Large TFT screen to display the test result clearly
- Measure FVC, PEF, FEV1 etc. parameters synchronously
- Support diagnosis evidence by volume and flow rate chart display
- With precise, credible test result and good consistency
- Built-in predicted value, display the test current condition by red, yellow and green bar
- Provide repeated measure and memorize the correlative data
- Communication with the computer with the USB (or Bluetooth), which can calculate data, analyse trend and export (Software is NOT compatible with Window XP 64 Bit, Windows 7 64 Bit and Windows 8.)
- Built-in lithium battery, battery power display
- Automatic power-off when there is no operation in one minute.
| MODEL: | SPIROMETER CMS-SP10 |
| Display | 1.8” 160 x 128 TFT display, led backlight |
| Dimensions | 97(L) x 89(W) x 36(H)mm |
| Flow Range | 2ℓ/s-16ℓ/s |
| Flow-Volume accuracy | ±3% or 50ml (whichever is greater) |
| Flow accuracy | ±5% or 200ml/s (whichever is greater) |
| Maximum volume | 10 ℓ |
| Operating Environment: | |
| Temperature | ±5°C ~ +40°C |
| Atmospheric pressure | 70kPa ~ 106kPa |
| Relative Humidity | ≤ 80% |
| Power Supply | DC3.7 V lithium battery |
| Weight | 150g |
| Quality Standard | ISO13485 |
