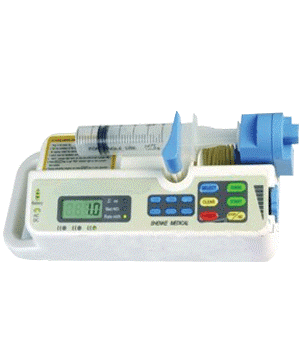

SP-500 SYRINGE DRIVER SP-500
- All standard syringes of10ml\20ml\50ml are compatible.The machine diagnoses the
- syringe size automatically,and with a simple syringe specification setting,the syringe
- pump can guarantee an accurate and safe injection.
- Unique function of bedside injection supervision which makes patients and their relatives as well as nurses more assured.
- Excellent injection function and operation.Even small-volume injection is accurate.
- Double CPU system ensures safe and reliable injection process.
- Driven by precision step motor,no pulsating waves shall occur during even low-rate
- injection.
- Accurate and sensitive pressure sensor detects occlusion pressure accurately.
- Alarms are given in case of malfunction or operation error and the machine stops operation automatically.
- Feasible injection rate range:10ml:0.1-100ml/h
50ml:0.1-500ml/h
-
Maximum power consumption:25VA,running more than 5h after being fully charged.
-
Injection increment:0.1ml/h
-
Injection accuracy: ±3%
-
Bolus:The fastest rate of the size of syringe in use
-
Displayed information:Rate,accumulated injection volume,Syringe size Battery capacity,Bed No.,AC power indicator,Battery charge indicator.
-
Accumulated injection volume:0-999.9ml
-
Alarm functions:Near,Over,OCCL.,low battery,syringe installation error,control abnormal,machine malfunction.
-
Electrical safety:Comply with the requirement of GB9706.1-1995,EN60601-1and UL60601-1
-
EMC(Electromagnetic compatibility);Comply with the requirement EN60601-1-2,EN60601-2-24
-
Power supply:50/60Hz AC100V-240V
-
Maximum weight:<3.0kg
